自動細胞収集装置 Cyto-Tek® 2500

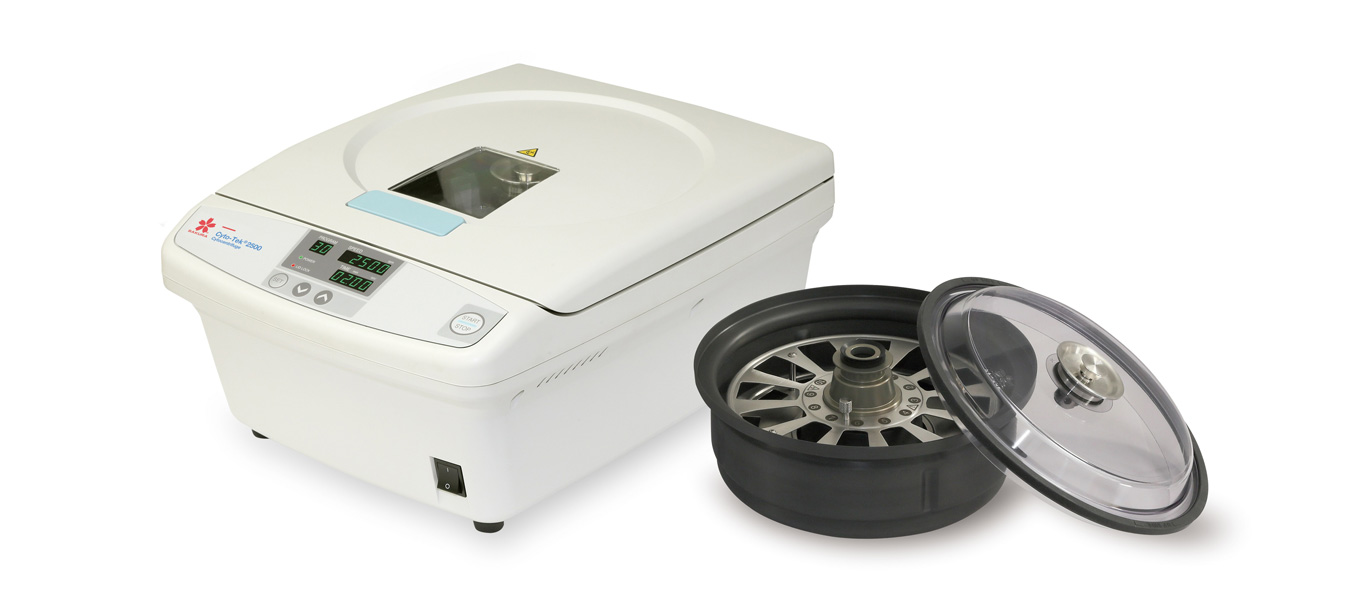

The Cyto-Tek® 2500 Cytocentrifuge is an instrument to contain various types of liquid specimens, including punctured fluid, body cavity fluid, and urine, in a chamber and to perform centrifugal smears on the slides.
｜ Specifications ｜ Documents ｜
Cell concentration performance
Direct smear by centrifugal force for a very small volume of specimens.
Capable of handling specimens of various volume
The user can choose 1mL, 6mL, or 12mL chambers according to the specimen volume.
Rotation speed of 200 to 2500 rpm
The user can set the rotation speed according to the specimen type and application, from urine and cerebrospinal fluid to intraoperative rapid cytology of body cavity fluid.
Easy to clean the guard bowl
Easy to clean the guard bowl
| Basic UDI(EU) | ：49464334300TE |
|---|---|
| Device Classifications | Japan： Class Ⅰ U.S.A.： Class Ⅰ EU：Class A |
Specifications
| Shape | Tabletop type |
|---|---|
| Dimensions | Width :375mm × Depth :490mm × Height :225mm |
| Weight | 10kg |
| Power Ratings | Rated power supply：AC 100-240V Rated power supply frequency：50/60Hz Power consumption：100VA |
| Supported Languages | Not supported(mainly Arabic numerals are displayed, some English words areare displayed) |
| Operating Environment | Ambient temperature 10～40℃ Relative humidity 30～85％ (Non-condensing) |
| Storage Environment | Ambient temperature –20～60℃ Relative humidity 20～90％ (Non-condensing) |
| Altitude | 2000m or lower |
